- The 400W 12V wind turbine is ideal for the leisure sector, particularly for charging batteries while on boats, gazebos, chalets, or mobile homes. It has three blades and a wind generator rated power with a DC voltage of 27-54V and battery voltage of 12V.
- The wind generator has a startup wind speed of 2.5 m/s (8’/s), rated wind speed of 12 m/s (35’/s), and rated speed of 800 r/min. This wind turbine is user-friendly, easy to install and maintain, has high wind power utilization, is lightweight, cute, and has low vibration.
- The wind blades are made of reinforced glass fiber, and their optimized structure and aerodynamic shape allow for easy DIY installation with all materials provided.
- This wind turbine comes with a 12V MPPT Controller, capable of a maximum daily output of 1.4KW. The charge controller is designed specifically for individual wind turbines, allowing for maximum power output and protection against overcharging.
- This wind turbine boost charging controller is equipped with an advanced MPPT boost charging unit, enabling it to start charging at low voltage and low wind speed. The build-in MPPT tracking unit allows for low wind speed and low voltage boost power generation without dragging the wind turbine. This wind turbine is an excellent choice for those seeking efficient and reliable charging solution.
400W Turbine Generator,Wind Generator 12V Turbine Wind Turbine Kit with MPPT Controller 3 Blades Wind Generator Kit Suitable for Boats, Gazebos, Chalets, or Mobile Homes
This is a 400 watts wind turbine with 12V MPPT controller. Max daily output is at 1.4KW.The Charge Controller is specially designed for each individual wind turbine, the special design allows you to get the most power out of the wind turbine as well as to protect your wind turbine from overcharging.
This wind turbine boost charging controller is equipped with an advanced MPPT boost charging unit, enabling it to start charging at low voltage and low wind speed. It has several notable features:
1.It is suitable for use with wind turbines within 200 W/300 W/400 W at 12 V; and 400 W/600 W/800 W at 24 V.
2.The rated current of this controller ranges from 10 A/16 A/30 A, depending on the size of the turbine.
3. It supports battery voltage of 12 V/24 V, with automatic identification to assist with compatibility.
4. This boost charging controller has an IP67 protection rating, ensuring its durability and resistance to dust, moisture, and water.
5. The build-in MPPT tracking unit allows for low wind speed and low voltage boost power generation without dragging the wind turbine.
This boost charging wind turbine controller is an excellent choice for those seeking efficient and reliable charging solutions for their wind turbines.
Specification
Note: This wind turbine doesn't contain the battery.Please refer to Package Content for the specific content of the product
Rated Power: 400W
Rated Voltage: DC27-54V
Battery Voltage: DC12V
Start-up Wind Speed: 2.5m/s(8'/s)
Rated Wind Speed: 12m/s (35'/s)
Number of Blades: 3
Material of Wind Leaf: PBT
Rotor Diameter: 1.2m(4')
Rated Speed: 800r/min[RPM]
Tower Diameter:>80 mm(3.2")
Tower Height: 4.5m-10m(15-33')
Battery Capacity: 200AH-400AH
Product Life: 15 years
Certification: CE, RoHS, ISO9001
Controller Model: MPPT
Battery Rated Voltage: DC12V
Rated Turbine Power: 400W
Brake Voltage: 14.5V
Turbine Recovery voltage: 13.2V
Rated panel Power: 500W
Largest Discharging Current: 20A
Battery overcharging Protection: 16.5 V (Turn off Load Output)
Battery Discharging Protection: 10.7 V(Turn off Load Output)
Battery Discharge Recovery Protection : 12V(Recover Load Output)
Static Power: 15mA
Working Temperature: -35~ 75℃
Inbreaking Protection: IP67
Package Content

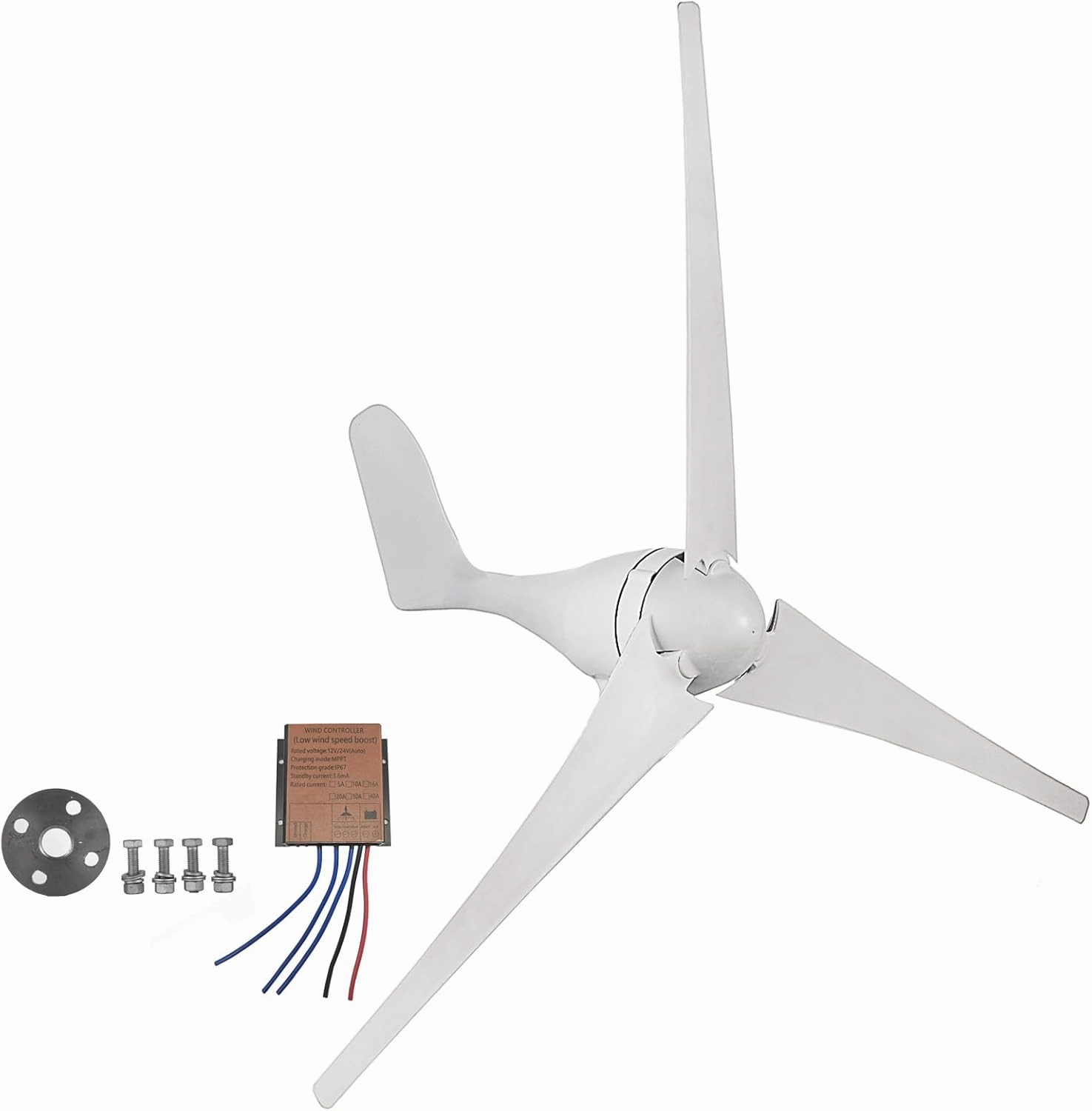

Wind Turbine x 1
MPPT Controller x 1
Nose Cone x 1
Set Screws and Nuts x 1
Blades x 3
Instruction Manual x 1
